Fast and safe
Compact
Flexible
Productive

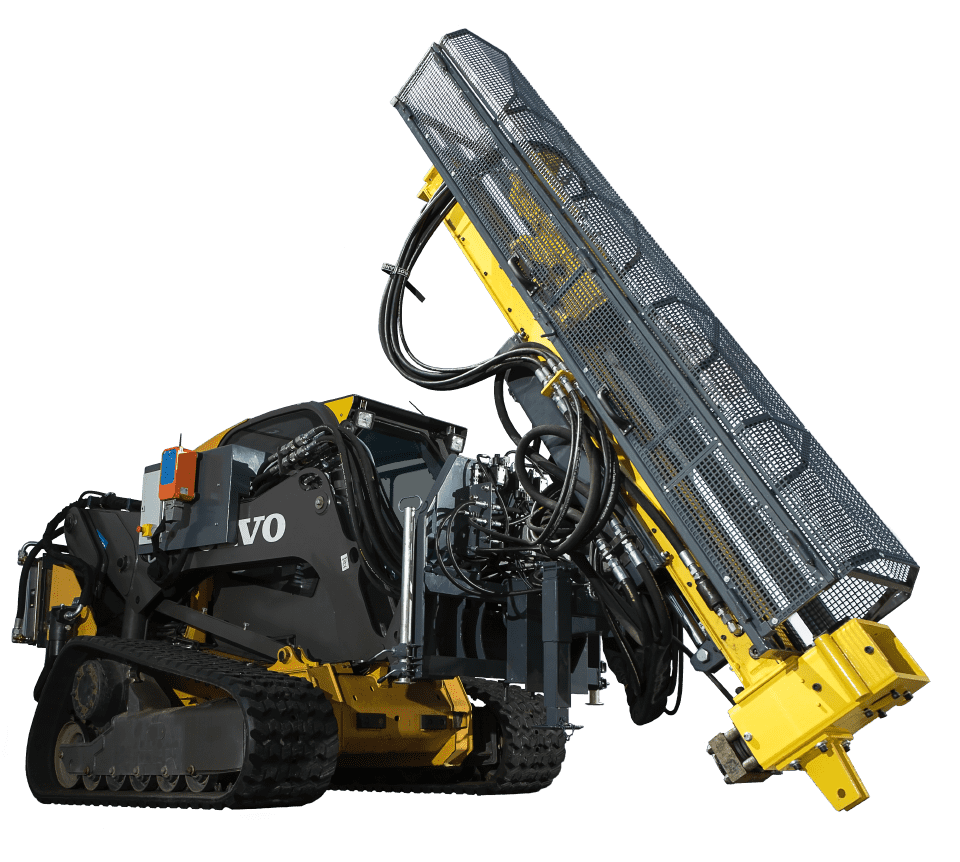

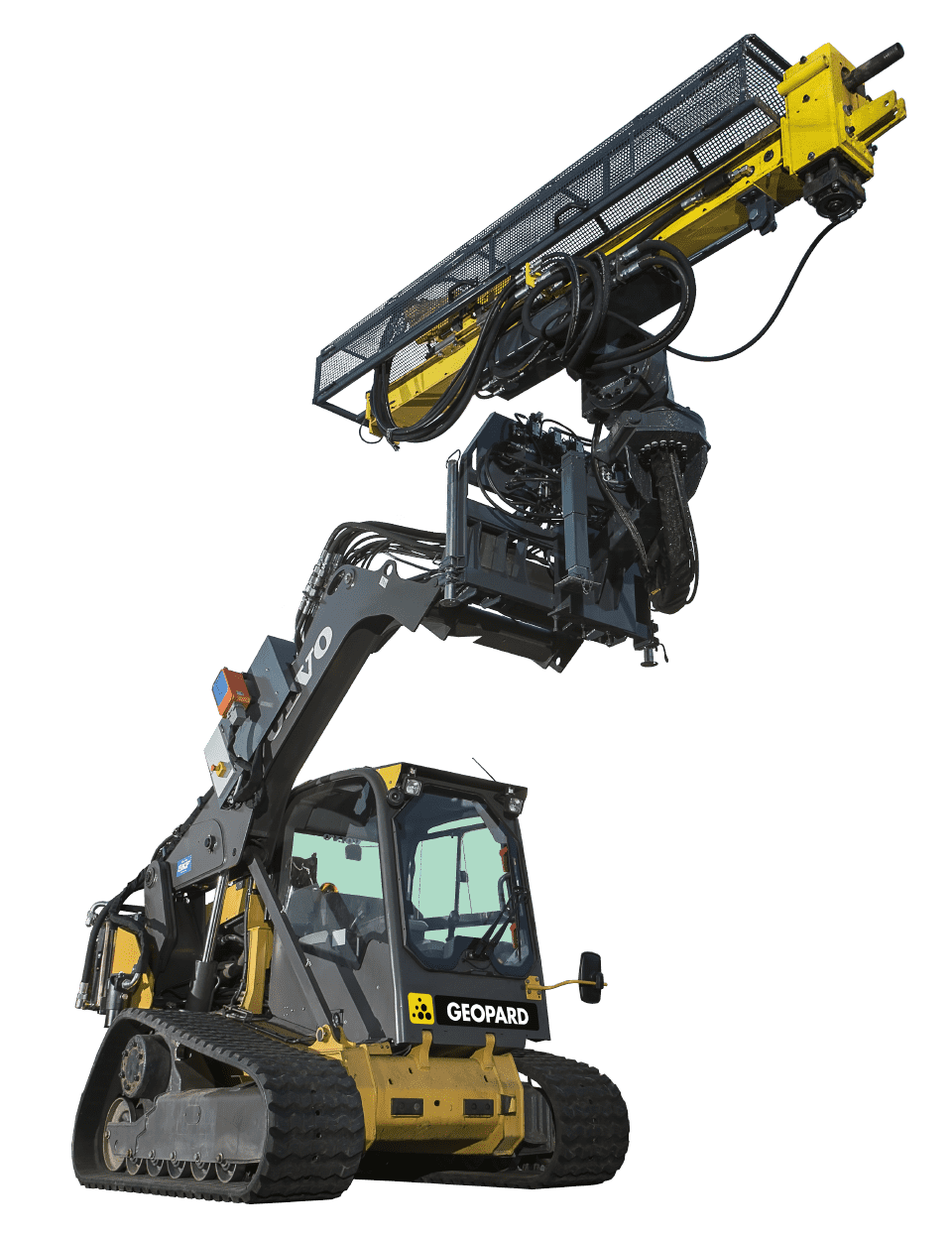

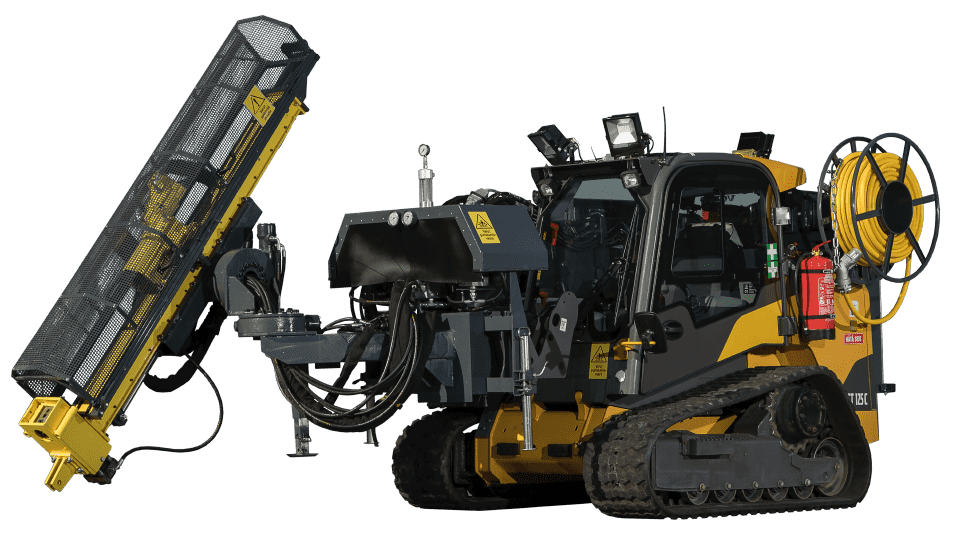

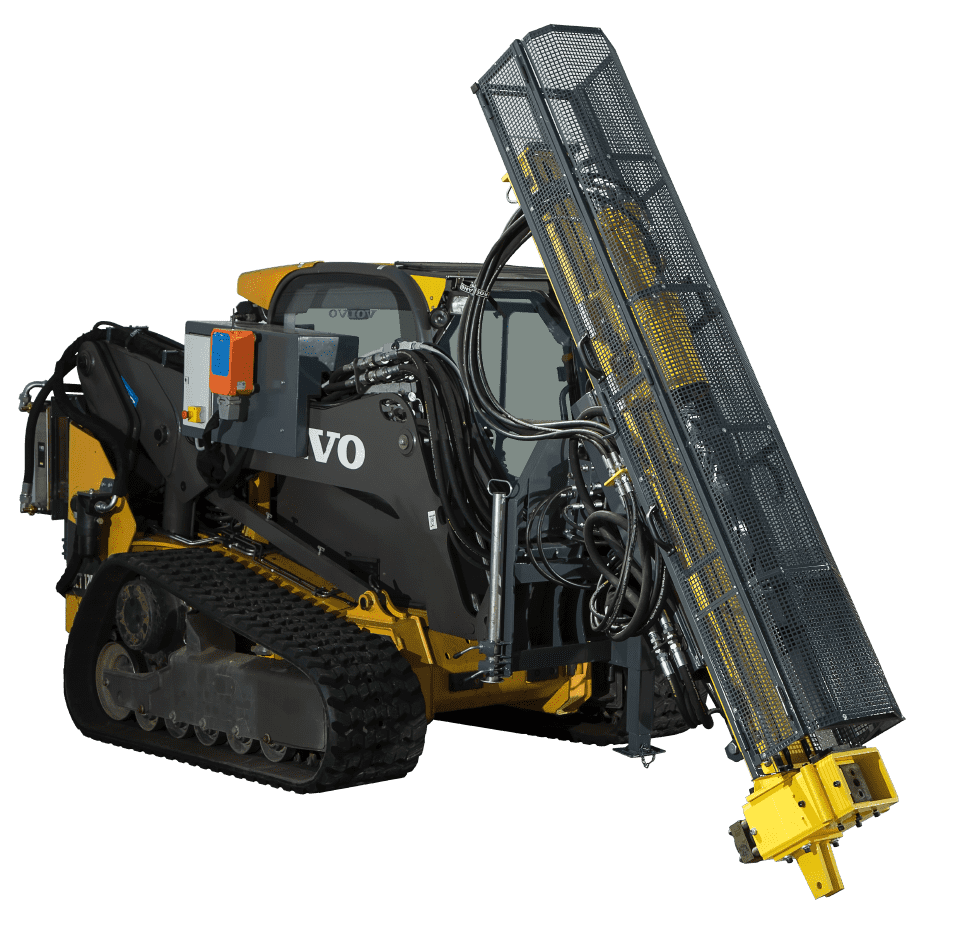

GEOPARD GEOROVER
Geopard is the market leading product for demanding underground core drillings in narrow spaced:
- Designed for mine production phase optimization/exploration from tunnel perimeter to optimize production and reduce excavation of waste rock
- Designed to operate in demanding underground environment and can be driven and remotely operated in tunnel. Machine weights 6 tons.
- Drill can be operated remotely and using electricity (690 V/400 V; 55 kW) only reducing emissions to tunnel and environment
- Highly flexible drilling angles – can operate 360° and upwards
Geopard can be equipped with diamond drilling, percussion drill and diamond wire saw for rock and concrete.
DIAMOND DRILLING MACHINERY AND SAMPLE SIZES
| Equipment | Core sample Ø | Drill hole Ø | |
|
NQ2 BWLTK |
50,7 mm 40.7 mm |
75,7 mm 60.0 mm |
|
| T256 | 41.7 mm | 56.3 mm | |
| WL-56/39 | 39.0 mm | 56.8 mm | |
| Other options available. Please inquire for more details | |||
TECHNICAL DETAILS
- Embedded on Volvo MCT125C
- 55 kW diesel / 55 kW electric
- Can be operated electrically
- Also available with precussion drill and diamond wire saw
- Remote controllable up to 30 m
- Dimensions: 6 m x 2 m x 3 m boom
OUR GOAL
We are currently doing diamond coring contracting to develop the machine further and our goal is to sell Geopard georovers internationally.
COMPANY
Established late 2014, Comadev developed between 2015 ̶ 2017 an efficient, compact and movable drilling platform Geopard® Georover responding to challenging requirements of underground mines and small spaces (i.e. garage or small niche).
CONTACT US
Eetu Pussinen, Managing director
eetu.pussinen@comadev.com
+358 40 773 5064
Esko Pukema, Coring supervisor
esko.pukema@comadev.com
+358 40 077 2459
Comadev Oy
Hiekkaharju 13
FI-96190 Rovaniemi
Finland
